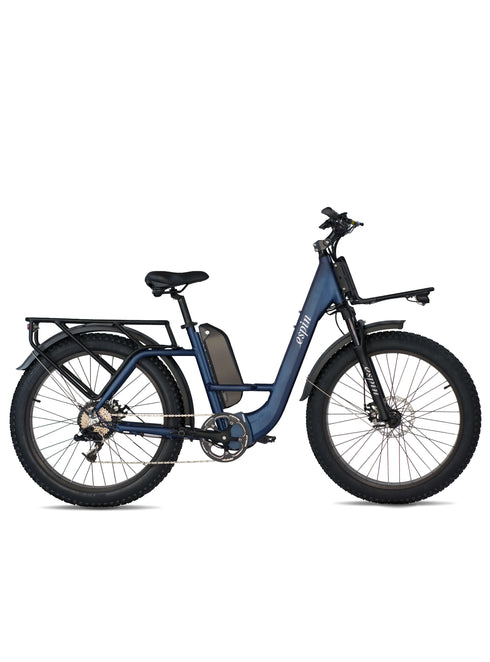

750W | 25 MPH | HYDRAULIC DISC |
26 x 4.0 Fat Tires | 6H | 25~50 Miles |
Motor Brand | Espin | Frame Size | 17" |
Motor Type | Rear Mounted Geared Hub | Frame Type | Step-thru |
Top Speed | Class 3 (up to 25 mph) | Handlebar | 31.8mm |
Motor Nominal Output | 750 watt nominal/1000 peak output | Pedals | Wellgo Aluminum Alloy Platform |
Motor Torque | 85 Nm | Rack Capacity | Rear Rack: 66 lbs (30kg) 23" x 6.5" / Front Rack: 22 lbs (10kg) 13" x 10" |
Battery | 48V, 14.5Ah (696Wh) | Seat Tube | Zoom 30.4mm |
Battery Charge Time | 6 Hours | Weight | 75 lbs |
Riding Range Estimated | 25-50 Miles | Gearing | S-Ride (8 Speed) 13-32T |
Display Type | ESPIN Color LCD | Brakes | Zoom Hydraulic Disc Brake 180mm Zoom levers with Integrated Motor Cutoff |

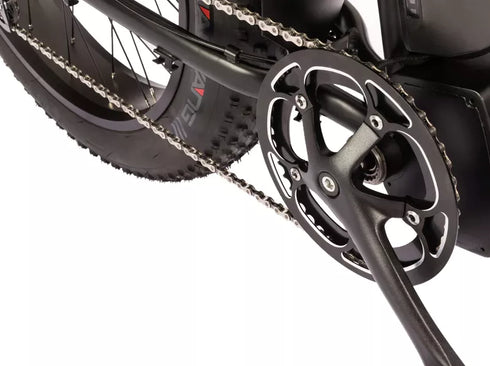

Readouts | Time, Speed, Battery, Assist Level (1-5), Odometer, Watt output | Crank | Alloy Cranks 170mm, 46T Chainring |

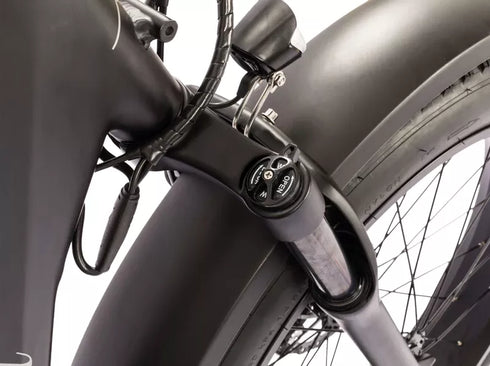

Drive Mode | Cadence Sensing Pedal Assist & Trigger Throttle | Fork | 100mm Travel Hydraulic Lockout |
- Espin Ebike*1
- 14.5 AH Battery*1
- 2 Amp Charger*1
- Tool Box*1
- User Manual*1
For more information, please click the following link to access the user manual:
Explore New Horizons
with Stability and Control
From beaches to city streets, confidently dominate any terrain with fat tires, a seamless frame, and hydraulic fork.

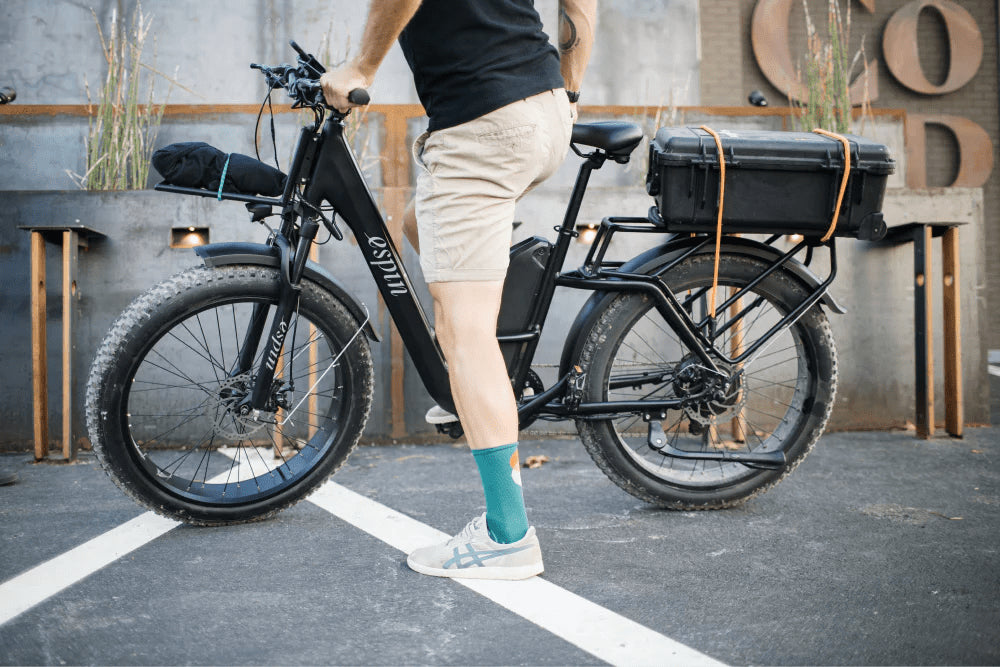

Load Up, Ride Out

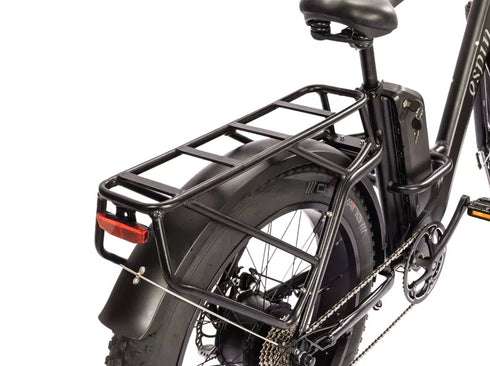

Designed with front and rear racks, ready for your baskets and cargo, shop with ease every time.

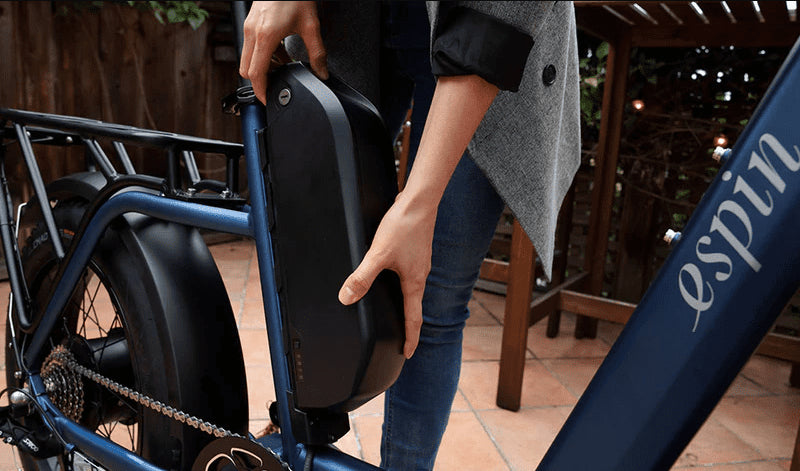

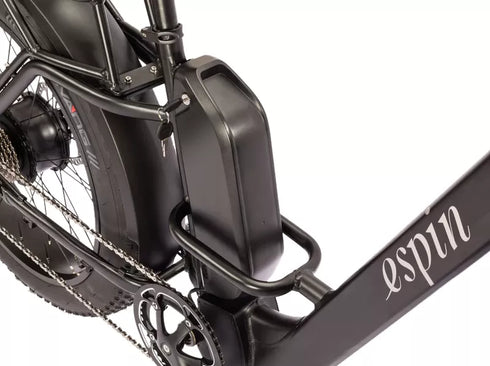

Samsung Powered, Safety Assured
Experience the stability of the Samsung 48V 14.5Ah battery, designed for your safe journeys.
Easy On, Easy Off

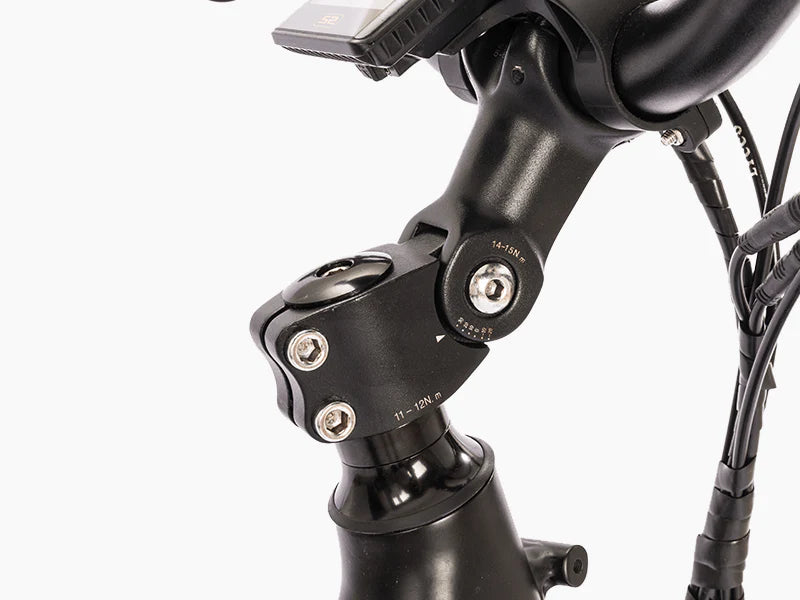

Adjust and Go
The Step-Through design ensures effortless mounting and dismounting.
Paired with an adjustable seat, you can easily set the perfect height for a comfortable and enjoyable ride.
